Product Description
| Brand | WanJi | |

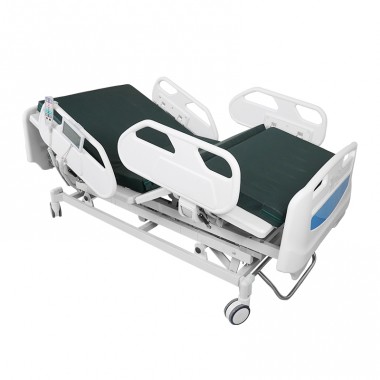

| Name | Multi-function electric hospital bed | |
| Material | Steel + ABS | |
| MOQ | 1 PCS | |
| Features | 1. Back elevation/decline | |
| 2. Leg elevation/decline | ||
| 3. Back and Leg elevation/decline | ||
| 4. Overall forward | ||
| 5. Overall backward | ||
| 6. Rise up and down | ||
| Standard | 1. One-time press-formed bed panel | |
| 2. 4 ABS telescopic guardrails, Bed head inside and outside with control button | ||
| 3. 1 sets of removable ABS bed head and bed tailboard | ||
| 4. 4 sets of linear faders, one-hand controller | ||
| 5. 4 central control mute wheel, Aluminum alloy brake pedal | ||
| 6. 4 Infusion Pole Slots | ||
| 7. 4 Drainage hook | ||
| Optional | 1. Bedsore prevention mattress 2.8cm thick, tri-fold mattress | |
| 2. Telescopic infusion pole | ||
| 3. Under the bed shelf | ||
| 4. ABS telescopic platen | ||
| 5. Backup power | ||
| 6. Weighing function and 1 touch screen controller | ||
| Product Details | Bed Structure:Main frame: 30×60×1.5mm high-quality carbon steel pipe. Beam: Welded and formed cold-rolled steel pipe. Base welding: smooth and flat, no burrs, no exposed solder joints, no bubbles, high precision, stable and reliable. Bed board: One-time forming cold-rolled steel plate, thickness 1.2mm, four-section structure, easy to disassemble, easy to clean and disinfect, and attached with steel pipe welding. The backboard support adopts the double-rod support method, and the connection is stable. The bed board has a perforated design for easy ventilation. Mattress guards are mounted on the bed board. | |
| Function:(1) The bed body can lift as a whole by 475 (±5%) ~ 780 (±5%) mm (distance from the ground to the bed). (2) Adjustable range of lifting performance: the back inclination is 0°~70º (+5º), the leg inclination is 0°~45º (+5º), and the bed inclination is ≥ 12º (+ 1º). (3) Surface spraying: It adopts green environmental protection spraying treatment, the overall color is consistent, and the spraying is even. The bed body is made of electrostatic powder coating, anti-rust fully treated paint, acid and alkali corrosion resistance, and fading resistance. (4) Headboard: ABS blow molding, acid and alkali resistance, easy to clean. It can be easily and quickly disassembled and can be used for CPR first aid. Equipped with patient information card slot. There are multi-function sockets at the head of the bed and the head of the bed, and a telescopic multi-function slot beside the bed, which can be configured with an infusion stand; there are four drainage hooks at the bottom of the bed. Guardrail: segmented four-piece side guardrail ABS overall blow molding, lower hidden design, with hydraulic rod, gentle descent, no noise. Guardrail base: aluminum alloy is cast and fixed on both sides of the bed, and it rises and falls synchronously with the bed. | ||
| Casters and Braking Systems:High-quality central control double-sided casters with a diameter of 125mm; four-wheel synchronous brakes, aluminum alloy pedals, stepping on the brakes, lifting and unlocking; the wheel surface is made of super polyurethane material, which is quiet and wear-resistant. It can be sterilized by water washing and high temperature. The metal structure of the main frame, the universal rotating shaft of the main frame, and the double axles adopt silent high-temperature grease precision ball bearings. | ||
| Motor:(1) 4 imported motors, brand: Lincoln, certified by safety specifications, low noise; EMI electromagnetic compatibility guarantee, quiet and noiseless operation, does not interfere with the work of ventilators, ECG monitoring and other equipment. One-click CPR function. (2) Control current: maximum current 100mA, input voltage: 24V DC safe voltage; transmission: 24V DC, four sets o | ||
